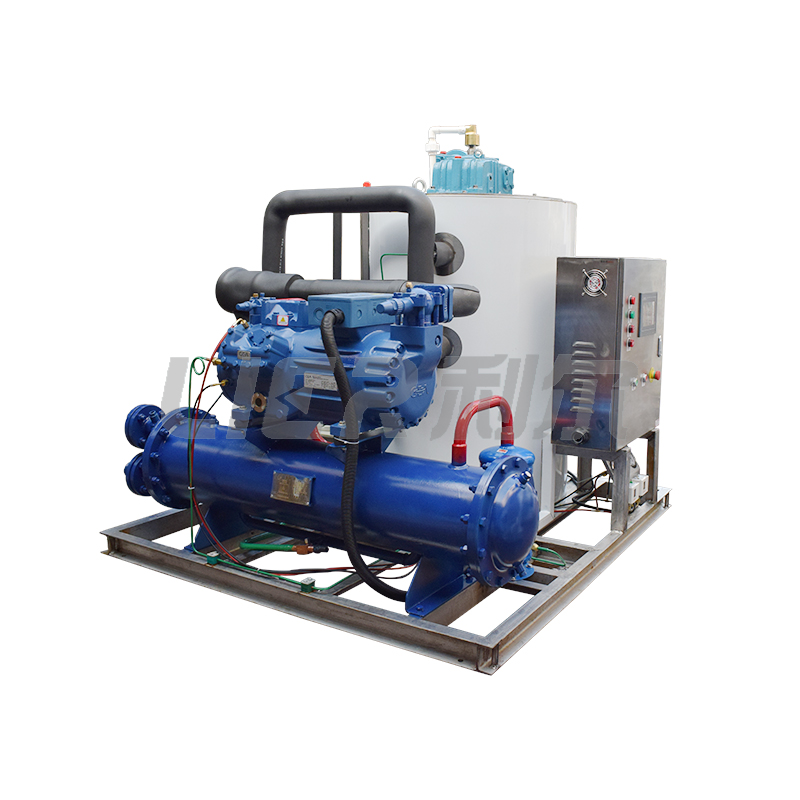

Seawater flake ice machine is usually installed and operational on bigger deep-sea fishing boats.
It is made of SUS316 which is seawater corrosion resistant. It's special MOC and design ensures long term working capabilities in marine environment.
This machine makes flake ice directly from sea water while the vessel is sailing.
Low temperature and salt content of seawater enable an higher energy efficiency ratio, lower temperature of flake ice and other features making it an indispensable partner for marine fishing application.
Danfoss South Korean PLC ensuring the most reliable quality
Flake ice discharge commences within 1 – 3 minutes of machine start up.
Assured full production capacity ensures ability to preserve the catch quickly and efficiently, minimising possible losses
Programmable PLC control system enables complete automatic operation and shutdown with the least human intervention.
All models of Lier, can be customized as per MOC, cooling method, refrigerant, voltage, size, ice storage size, split, etc., based on each customer's specific requirements.
Modelodel | LRH-1T |
Daily output | 1t/d |
Total power | 6.5kw |
Compressor power | 6HP |
Compressor brand | GEA (Bock) Germany, Danfoss Denmark, Copeland USA, Bisel Germany, Han Taiwan |
Refrigerating capacity | 7.5 |
Reducer power | 0.37kw |
Cooling style | Water-cooling |
water inlet/outlet pipe size | 3/4" |
Unit dimension | 1310*950*890 |
Net weight | 256kg |
