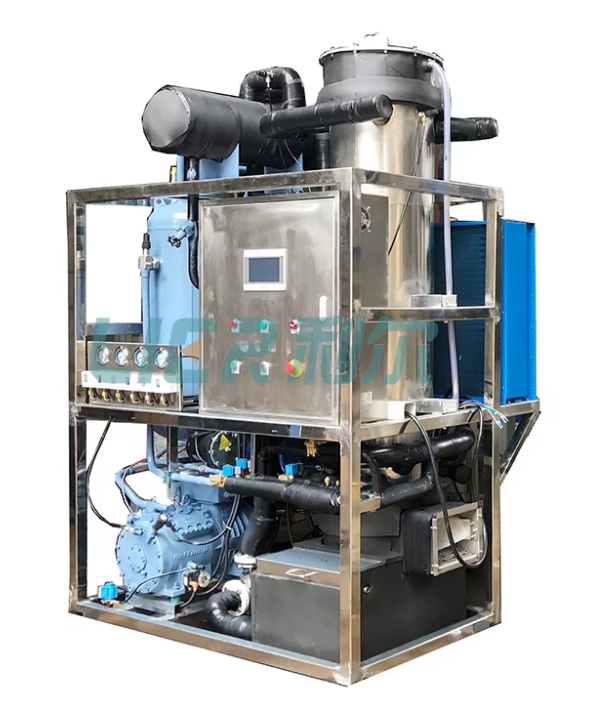

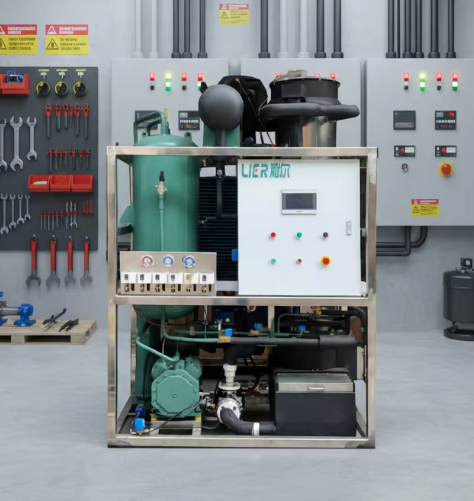

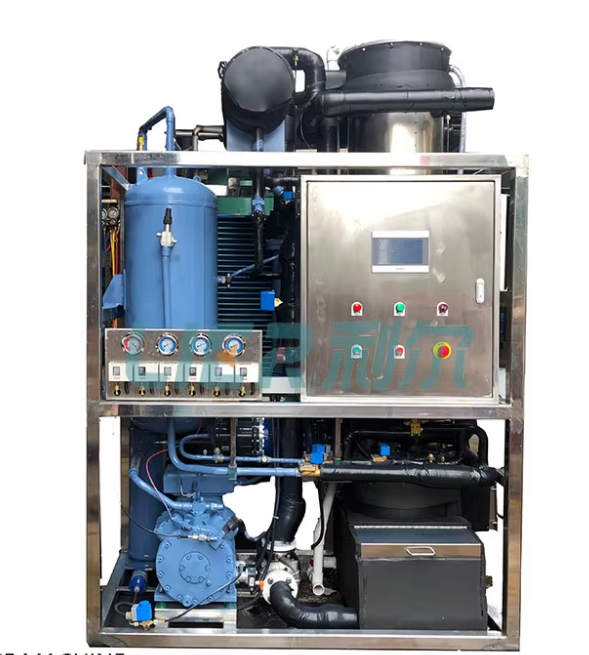

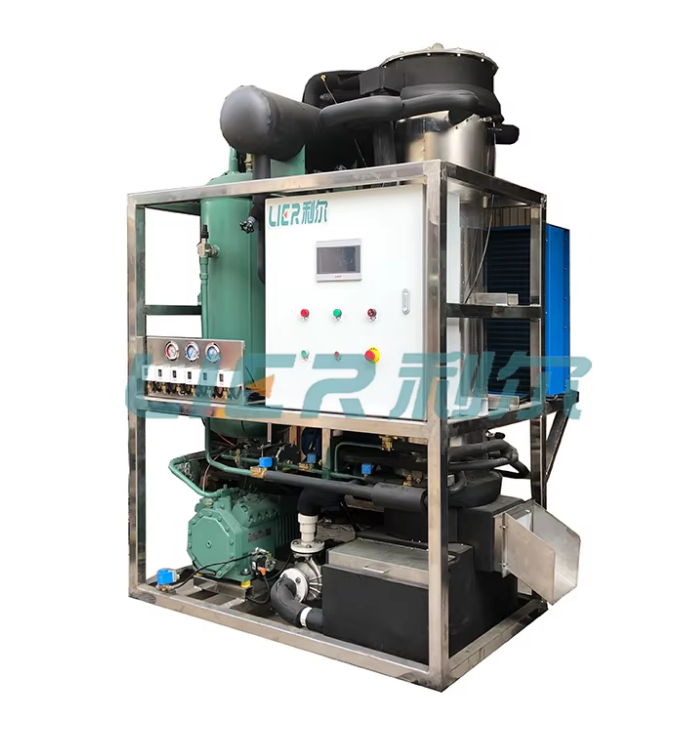

SHENZHEN LIER High Production Tube Ice Machine 1 Ton 2 Ton 3T 5T in 24 Hours Automatic High Capacity Kristal Es

5t  A Ice machine manufacturer 2tons tube ice machine CE certification

Product Description

Tube ice machine features
1 High reliability and low fault failure
——80% components of the tube ice maker system are world famous brand. Through decades of research and practice, LIER products can run continuously without fault and keep good run and stable ice output even in ambient temperature 5°C-4O°C. Special designed machine can even allow normal run in the most atrocious conditionns(-5°C—+56°C).
2 Scientific design and advanced processing technique30T tube ice machine systemflake ice machineice evaporator
——LIER tube ice maker has scientific design and can also make the best ice making system according to customer's actual demand, with world leading ice making technology and processing and testing equipments. Each part is processed with strict technique requirement and strictly tested before using.
3 Sanitary
——Quality and sanitary tube ice maker is the aim of  LIER All parts contacting with water are made of stainless steel SUSSO4 or SUS316L and PE material. Tube ice produced is sanitary without smell, meeting HACCP and PDA certificate requirement.
4 Efficient and environment friendly
——With stable continuous running, tube ice maker realizes the running without energy wasting. Compared with other ice making equipments,  tube ice maker boasts the advantages of compact structure, small area, low production cost, high refrigeratjon effect and low energy consumption, etc.
5 Module design and simple maintenance
—— tube ice maker has module design for simple maintenance on site. Tube ice maker can be installed inside a standard container, very suitable for frequent moving occasion.

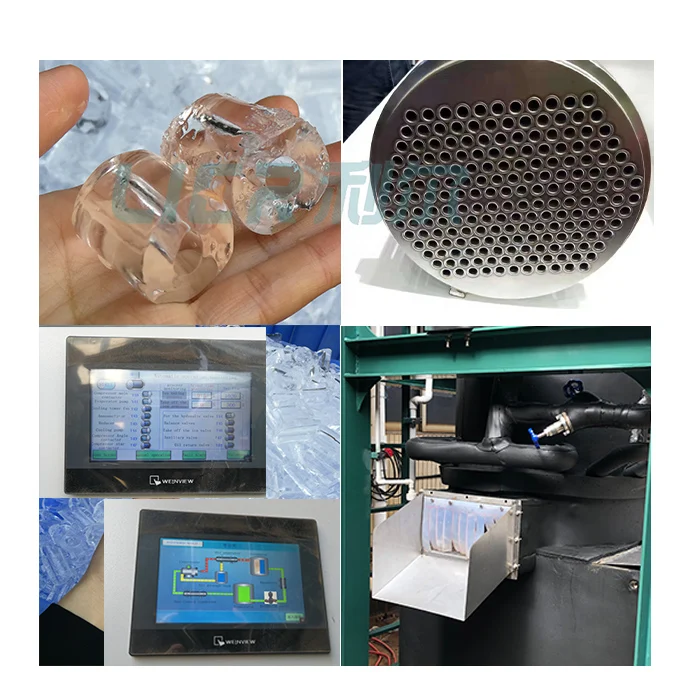

Shenzhen lier machinery equipment tube ice machine features

Outer dimension options: 22mm, 29mm, 38mm and 42mm

Longer melting time than flake ice

High suitability for transportation

Tube Ice Machines are suitable for refrigerant R22 and R404a

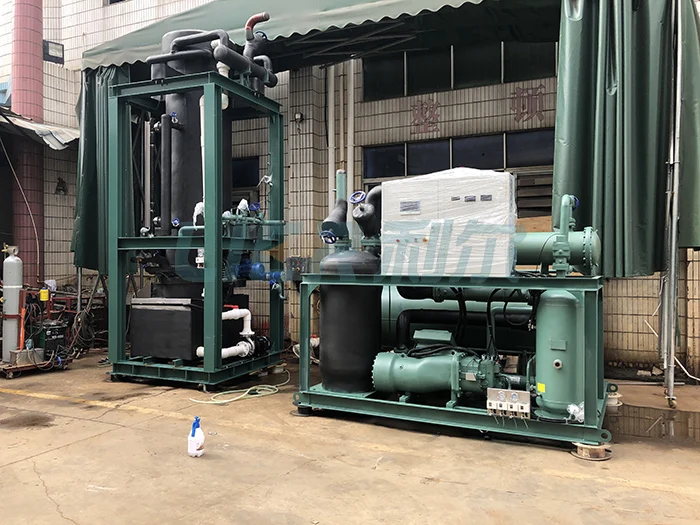

  H Tube Ice machine 10t 20t 30t Ice Plant Solution with Automatic Packing System CE certification

- 1T, 2T, 5T, 10T, 15T, 20Ton, 30T daily , tube ice machine,water cooling

- Bitzer or Refcomp (italy) compressor with R404a refrigerant ,

- Castel expansion valve,  LG PLC controller

- The controller has working status indication, fault alarm indication, and automatic fault diagnosis function.

- Full self-protection function, - Low maintenance , after sale service

- Voltage: 380V/50Hz/3P;. or to be confirmed by customer.

- PLC automatic operating monitoring screen, can be in your local language, we will provide original chinese (or english) version for you translation after order confirmation

Paramete

1.Tube ice machine,  Hanbell/BITZER compressor, refrigerant R404a, air cooling
2.Standard working condition:Ambient Temp.32℃,inlet water Temp.18℃, Evaporating Temp.: -15℃,Condensing Temp.: 40℃ , outlet water temperature: -5~-8℃
3.Tube ice diameter(mm):Φ22/φ29/φ35/φ42
4.Power supply 380V/50Hz/3P

Effect of temperature on ice machine performance

Ice machine performance and ice production is effected by the ambient temperature and inlet water temperature.

 1, standard working condition:

The rated ice capacity is under standard condition, inlet water temperature 15℃, ambient 25℃. ice machine working ambient temperature is 5℃~ 35℃ . when temperature is beyond this working temperature, the ice machine will be in a risk of damage.

2, ice production will be fluctuate per different ambient temperature and inlet water temperature, the ice production is less when temperature is higher. Ice production is more when temperature is lower. Ice production will be more than 5000kgs/day If ambient temperature is lower than standard temperature.

1, Lifespan effected by ambient temp., and routine maintenance

Ice machine ideal performance ambient temperature is 15C to 25C, and ice machine could be a good lifespan. when the ambient temperature is over 25C, the ice machine performance decrease, ice lifespan is less.

2, When the ambient temperature is over 35C, your ice machine is in danger, and It is necessary to use cold water machine to supply cold water, if inlet water over 25C, the ice production will be reduced.

Put Ice machine in a created temperature-controlled environment, such as a cooling room at temperature of its working condition( best is 10~20C),  so that to ensure the ice machine components performance well.

Tube Ice applications include:

* Human consumption

* Port ice plants

* Hospitals

* Supermarkets and convenience stores

* Aquatic and fresh food preservation

* Logistic fresh preservation

* Chemical and concrete products

Tube ice machine application

1 Human consumption ice plant
2 Port ice plant
3 Coffee shop,bar,and hotel,etc
4 Supermarket,convenienience shop and restaurant,etc
5 Aquatic products and food fresh preservation
6 Logistic fresh preservation
7 Chemical and concrete projects

Certification

Packaging & Shipping

Export case or container

 High Quality Gourmet Ice Making systems Cube ice maker 20tons

Our Services

A. Our pre-sale supportive service

We are ready to serve you 24 Hours A Day, 7 Days A Week by experienced colleague,

Payment service, T/T,  L/C for options. Customized service, OEM & ODM service

Provide our R&D service

B. Sale service,

We’ll in charge of everything once all information confirmed by customers after order released till cargo deliver to destination. We strictly ship goods per customer requested delivery date.

C. After-sales service

We provide after sales services, we will be responsible for the quality problem, technical issue of our products.

D. Technical service support

1, Providing project suitable scheme, recommend the best models

2, Research & development support to find a better solution for each customers if NON-standard models cannot satisfy you.

3, Installation guidance support for your installation, debugging and operation if it necessary;

4, Spare parts and technical backup at anytime;

5, Training service available if it necessary.

Company Information

Shenzhen Lier Machinery Equipment Co.,Ltd is a high-tech enterprise integrating R&D, manufacturing, engineering installation and after-sale service for ice machine equipment since 2006. our company now as one of a leading manufacturers in China, our factory passed quality management system ISO9001:2008, products with CE, UL approval.

 LIER has export more than 7years export service experience, ice machine widely used for ice cooling engineering construction project , such as construction project, concrete project, and some other seafood conservation projects. we believe that we are a forward looking manufacturer worth cooperation.

LR  company Specialized in manufacturing & researching, development,distributing ice machine

Main products, ranges from 0.3T to 60T ice machine including flake ice maker, tube ice maker, block ice maker and cube ice maker

A. Established in 2007, factory around 8.000m2,

B. One of China's ice machine pioneer companies with independent export right.

C. production line 4

D. Stuff: around 150 experienced employee, innovative patent over 30,

E. Sophisticated Engineer with rich R&D and installation experience

F. passed quality management system ISO9001:2008 attestation.

G: equipment : 2.5m vertical lathe, various horizontal lathe, automatic welding machine, 850℃heat treatment equipment , acid washing pool,
