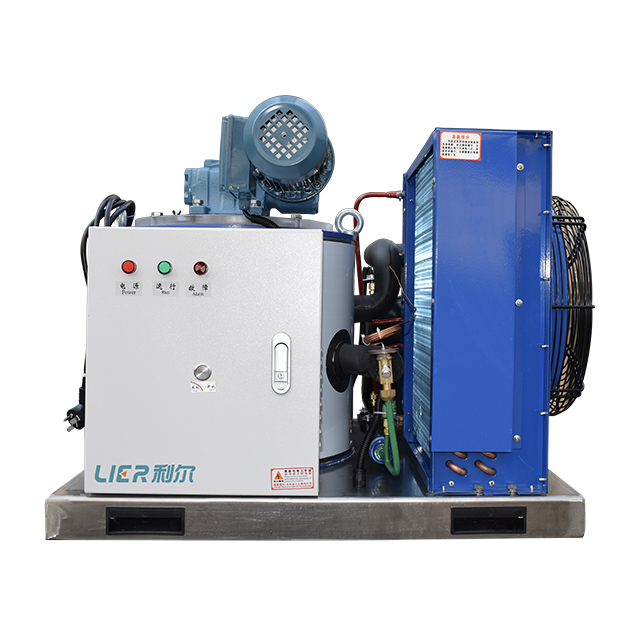

(1)Commercial flake ice machines are widely applied into big supermarket chains, seafood market, Fishing boat ，hotels, food processing and vegetable preservation industries, etc.
(2) Ice Thickness:1.8-2.5mm; Fake ice temperature: -7degree Applications
(3)The following standard cooling methods can be customized according to customer needs: air cooling or water cooling.
(4)Standard conditions: ambient temperature 25 °C, water supply temperature 15 °C, evaporation temperature -22 °C, condensation temperature 40 °C;
(5)Core Accessories: Bitzer / GEA / Copeland / Danfoss.
(6)Can be customized to meet any type of non-standard custom requirements，(Voltage can be customized according to customer needs).
Machine type | Model | Daily output | Total power | Refrigerating | Refrigerants | Power supply | Unit measuerment | Unit net weight |
Flake ice machine | LR-03T | 300 | 1.8 | 1.2 | R22/R404a | 1P/220V/60HZ | 760*730*450 | 115 |
LR-05T | 500 | 2.5 | 3.7 | R404a | 3P/380V/60HZ | 1310*890*780 | 195 | |
LR-1T | 1000 | 4.8 | 6.5 | R404a | 3P/380V/60HZ | 1310*970*880 | 227 | |
LR-1.2T | 1200 | 5.4 | 7.8 | R404a | 3P/380V/60HZ | 1310*970*980 | 263 | |
LR-1.5T | 1500 | 7.3 | 9.8 | R404a | 3P/380V/60HZ | 1310*970*980 | 364 | |
LR-2T | 2000 | 8.5 | 13 | R404a | 3P/380V/60HZ | 1500*1095*1040 | 423 | |
LR-2.5T | 2500 | 9.2 | 16.2 | R404a | 3P/380V/60HZ | 1500*1095*1200 | 456 | |
LR-3T | 3000 | 12.2 | 19.5 | R404a | 3P/380V/60HZ | 1750*1190*1200 | 530 | |
LR-4T | 4000 | 16.3 | 26 | R404a | 3P/380V/60HZ | 1700*1650*1250 | 630 | |
LR-5T | 5000 | 19.6 | 32.5 | R404a | 3P/380V/60HZ | 1700*1650*1450 | 760 | |
LR-6T | 6000 | 23.5 | 39 | R404a | 3P/380V/60HZ | 1700*1650*1450 | 867 | |
LR-8T | 8000 | 26.5 | 49 | R404a | 3P/380V/60HZ | 2500*2000*1560 | 968 | |
LR-10T | 10000 | 32.5 | 65 | R404a | 3P/380V/60HZ | 2500*2000*1700 | 1260 |
(1)Commercial flake ice machines are widely applied into big supermarket chains, seafood market, Fishing boat ，hotels, food processing and vegetable preservation industries, etc.
(2) Ice Thickness:1.8-2.5mm; Fake ice temperature: -7degree Applications
(3)The following standard cooling methods can be customized according to customer needs: air cooling or water cooling.
(4)Standard conditions: ambient temperature 25 °C, water supply temperature 15 °C, evaporation temperature -22 °C, condensation temperature 40 °C;
(5)Core Accessories: Bitzer / GEA / Copeland / Danfoss.
(6)Can be customized to meet any type of non-standard custom requirements，(Voltage can be customized according to customer needs).
Machine type | Model | Daily output | Total power | Refrigerating | Refrigerants | Power supply | Unit measuerment | Unit net weight |
Flake ice machine | LR-03T | 300 | 1.8 | 1.2 | R22/R404a | 1P/220V/60HZ | 760*730*450 | 115 |
LR-05T | 500 | 2.5 | 3.7 | R404a | 3P/380V/60HZ | 1310*890*780 | 195 | |
LR-1T | 1000 | 4.8 | 6.5 | R404a | 3P/380V/60HZ | 1310*970*880 | 227 | |
LR-1.2T | 1200 | 5.4 | 7.8 | R404a | 3P/380V/60HZ | 1310*970*980 | 263 | |
LR-1.5T | 1500 | 7.3 | 9.8 | R404a | 3P/380V/60HZ | 1310*970*980 | 364 | |
LR-2T | 2000 | 8.5 | 13 | R404a | 3P/380V/60HZ | 1500*1095*1040 | 423 | |
LR-2.5T | 2500 | 9.2 | 16.2 | R404a | 3P/380V/60HZ | 1500*1095*1200 | 456 | |
LR-3T | 3000 | 12.2 | 19.5 | R404a | 3P/380V/60HZ | 1750*1190*1200 | 530 | |
LR-4T | 4000 | 16.3 | 26 | R404a | 3P/380V/60HZ | 1700*1650*1250 | 630 | |
LR-5T | 5000 | 19.6 | 32.5 | R404a | 3P/380V/60HZ | 1700*1650*1450 | 760 | |
LR-6T | 6000 | 23.5 | 39 | R404a | 3P/380V/60HZ | 1700*1650*1450 | 867 | |
LR-8T | 8000 | 26.5 | 49 | R404a | 3P/380V/60HZ | 2500*2000*1560 | 968 | |
LR-10T | 10000 | 32.5 | 65 | R404a | 3P/380V/60HZ | 2500*2000*1700 | 1260 |
