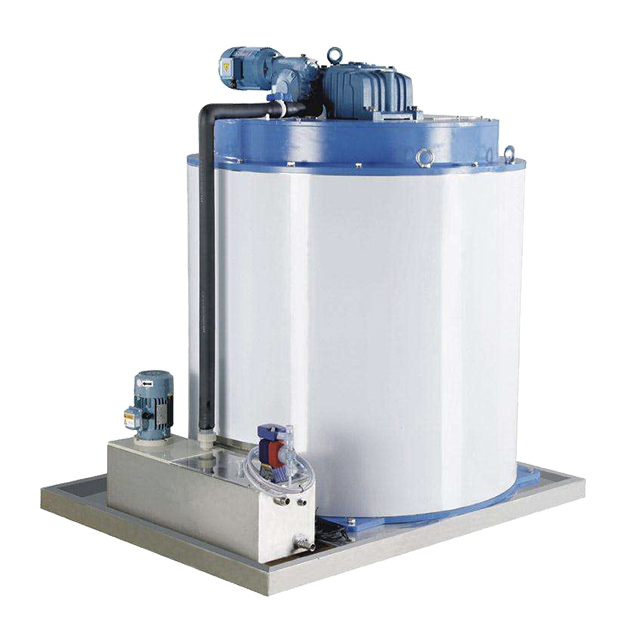

we are professional in producing flake ice evaporator.our evaporator with fixed vertical design is made of SUS304 or carbon steel with high heat transfer efficiency and surface Nobelium electroplated.The automatic protection welding equipment and annealing heat treatment furnace ensure the ice machine high quality and performance better.
Flake ice machine evaporator are widely applied in flake ice making plant and ammonia system ice machine,etc. To realized the continuous ice making users only need to connect the evaporator tube to the refrigeration source,easy to instillation,lower cost.
Flake ice evaporator technical parameter | |||||||
Model | Ice output | Cooling capacity | Power | Total Power | Regrigerants | Single Barrel Dimension (mm) | Net Weight |
LRD-02T | 200 | 1.2 | 1P/380V/50Hz | 0.25 | R404A | 580*415*600 | 105 |
LRD-05T | 500 | 3 | 3P/380V/50Hz | 0.32 | R404A | 900*580*780 | 195 |
LRD-1T | 1000 | 6 | 3P/380V/50Hz | 0.32 | R404A | 900*580*880 | 227 |
LRD-1.5T | 1500 | 9 | 3P/380V/50Hz | 0.32 | R404A | 900*580*980 | 345 |
LRD-2T | 2000 | 12 | 3P/380V/50Hz | 0.39 | R404A | 910*680*1050 | 425 |
LRD-2.5T | 2500 | 15 | 3P/380V/50Hz | 0.39 | R404A | 910*680*1200 | 468 |
LRD-3T | 3000 | 18 | 3P/380V/50Hz | 0.57 | R404A | 910*680*1200 | 530 |
LRD-4T | 4000 | 24 | 3P/380V/50Hz | 0.57 | R404A | 1190*890*1250 | 646 |
LRD-5T | 5000 | 30 | 3P/380V/50Hz | 0.57 | R404A | 1190*890*1600 | 765 |
LRD-8T | 8000 | 52 | 3P/380V/50Hz | 0.95 | R404A | 1720*1270*1680 | 825 |
LRD-10T | 10000 | 65 | 3P/380V/50Hz | 0.95 | R404A | 1720*1270*1820 | 978 |
LRD-15T | 15000 | 97.5 | 3P/380V/50Hz | 1.2 | R22 | 2160*1650*1865 | 1540 |
LRD-20T | 20000 | 130 | 3P/380V/50Hz | 2.62 | R22 | 2160*1650*2050 | 2120 |
LRD-25T | 25000 | 162.5 | 3P/380V/50Hz | 2.62 | R22 | 2160*1650*2265 | 2940 |
LRD-30T | 30000 | 210 | 3P/380V/50Hz | 4 | R22 | 3860*2180*2400 | 3420 |
LRD-40T | 40000 | 300 | 3P/380V/50Hz | 4 | R22 | 3100*2370*3027 | 3570 |
LRD-50T | 50000 | 375 | 3P/380V/50Hz | 4 | R22 | 3100*2370*3127 | 3650 |
LRD-60T | 60000 | 450 | 3P/380V/50Hz | 4 | R22 | 3100*2480*3127 | 3970 |
